Automatic Continuous Plastic Bag Sealer with Conveyor
₹45,000.00
| Sealing Speed |
0-12 m/min (variable via AC motor) |
|---|---|
| Sealing Width |
6-15 mm (adjustable depth) |
| Bag Thickness |
0.02-0.5 mm |
| Conveyor Load Capacity |
3-5 kg max |
| Temperature Control |
0-300°C (PID digital display) |
| Power Supply |
220-240V AC, 50Hz, 750-1000W |
| Conveyor Dimensions |
135-200 mm width x 1.5-2 m length |
| Machine Dimensions (LxWxH) |
840 x 380 x 320-970 mm (horizontal/vertical) |
| Weight |
25-35 kg |
| Material |
SS 304 body, Teflon belts |
Automatic Continuous Plastic Bag Sealer with Conveyor delivers reliable, continuous sealing for pre-filled plastic bags in industrial lines. This semi-automatic machine uses heated Teflon bands to create strong 6-12mm seals on pouches up to 0.5mm thick, handling speeds of 12 m/min without downtime.

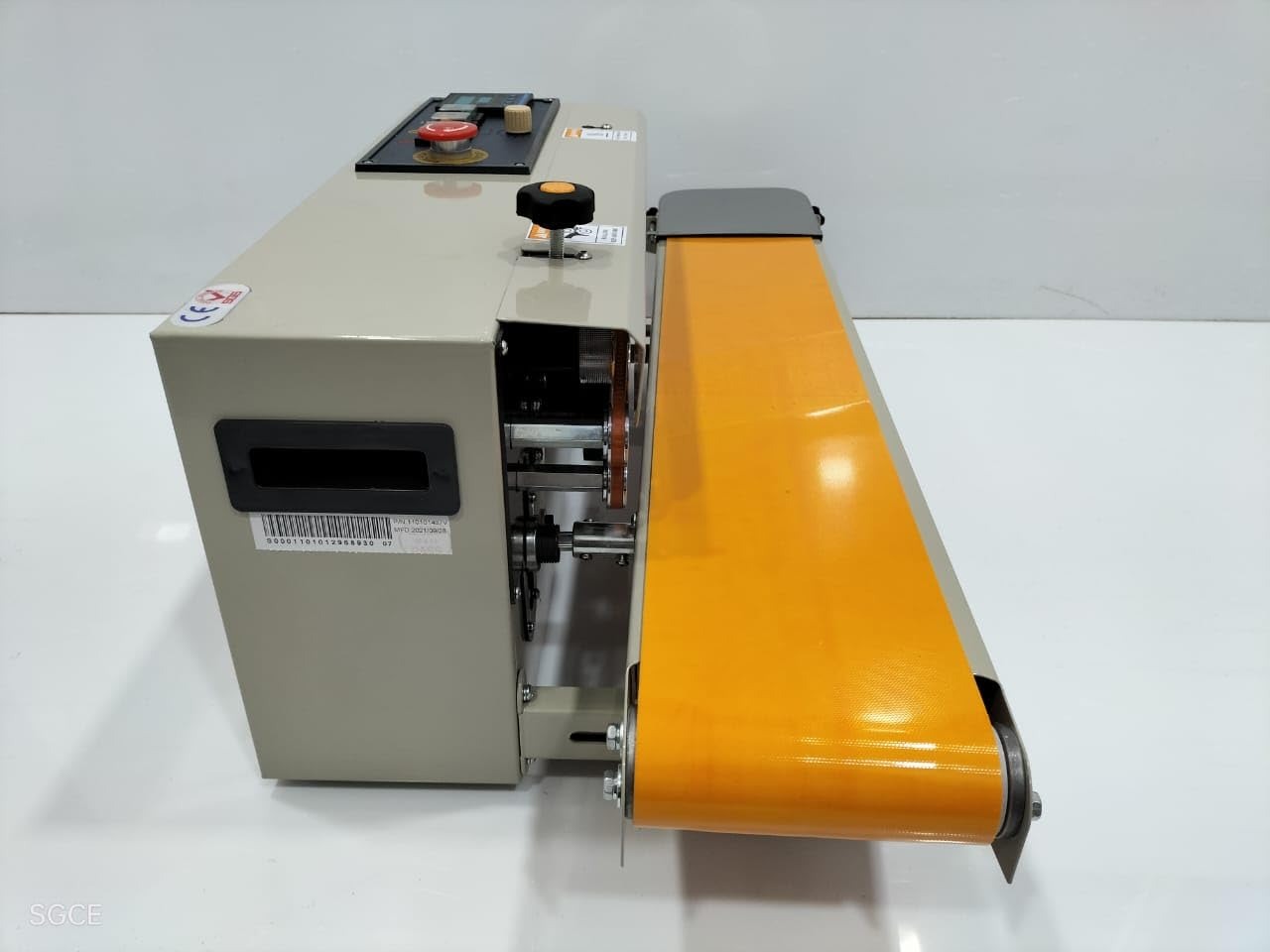

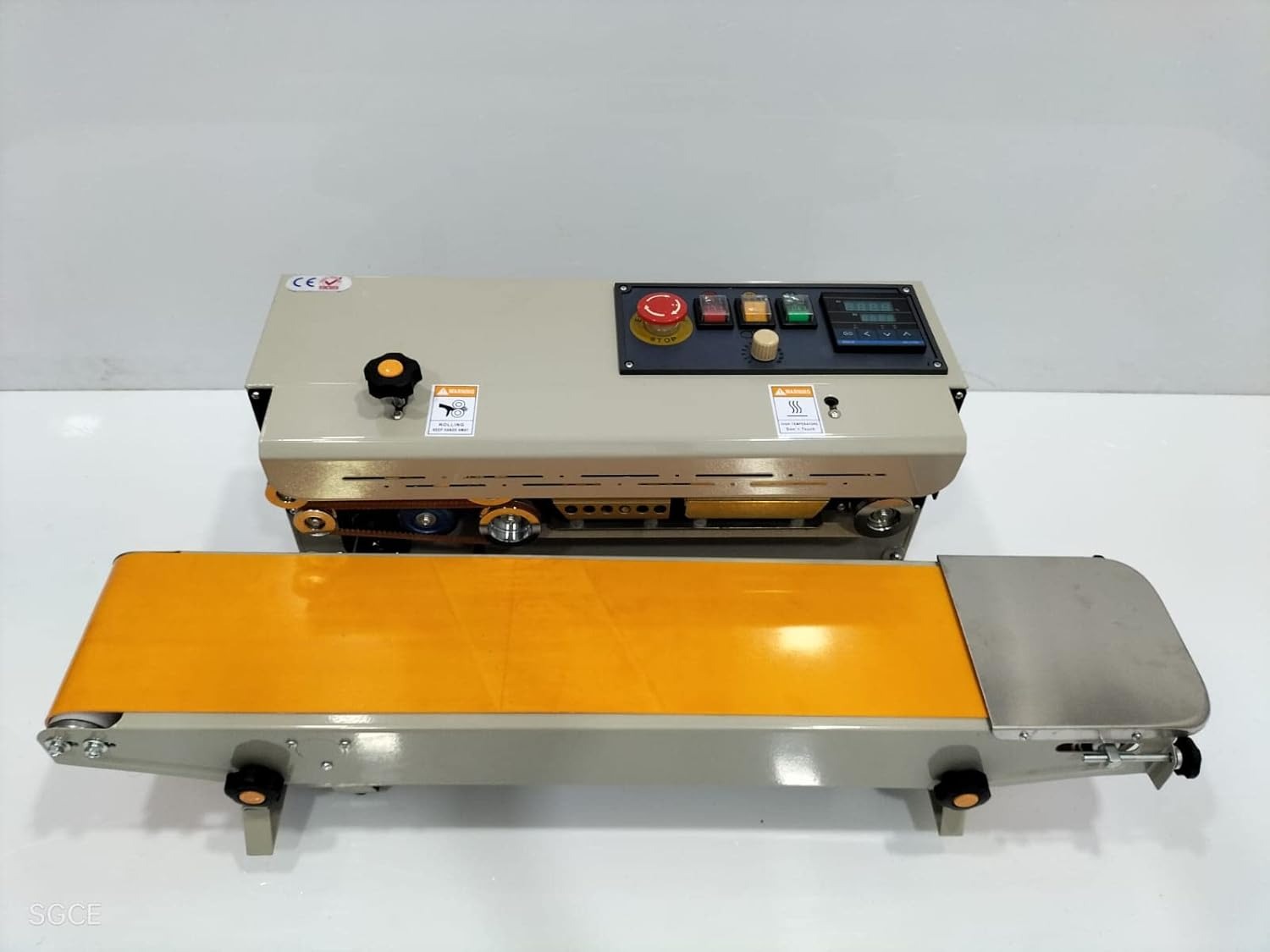

The conveyor belt (135-200mm wide, up to 5kg load) automates feeding, with variable speed synced to sealing jaws for powders, granules, liquids, or solids. SS 304 construction ensures GMP hygiene, while digital PID temperature control (0-300°C) prevents overheating on thin films. Matches the uploaded image’s orange belt and panel design.
Standout Features
Dual Bands & Cooling: Uniform seals with instant cooling to avoid deformation.
Mounting Options: Horizontal for dry goods; vertical for liquids to minimize spills.
Safety & Extras: Emergency stop, overheat protection, optional nitrogen flush or ink coder for batch printing.
Power Efficiency: 750W, 220V/50Hz—runs 2000+ pouches/hour at <1 kWh.
